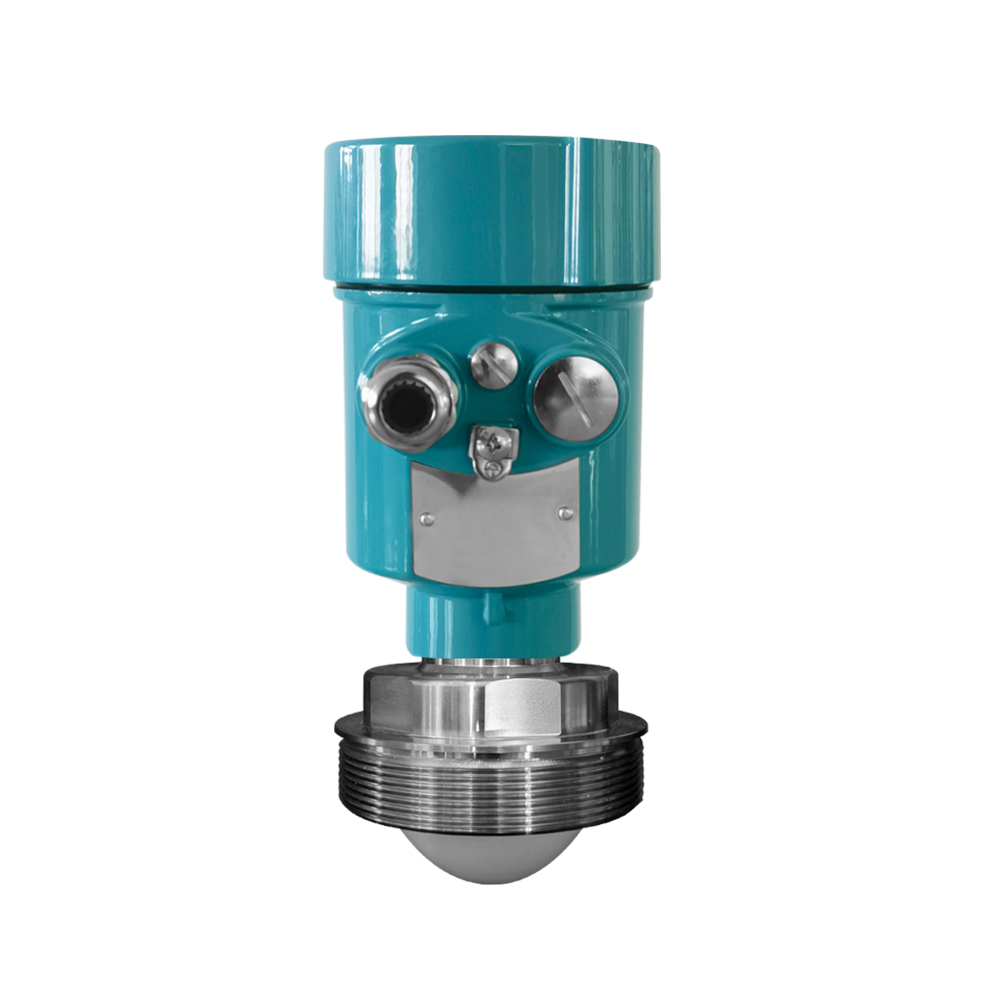

ZAXPULS H81 All Purpose 80G Radar
ZAXPULS H81 can measure a wide variety of liquids and solids through equipped with diffenrent antennas. It is suitable for industrial application that capable of excellent performance even if strong vapor, corrosion,heavy dust existing, we can also equip it a high temperature electronics module that sufficient to deal with 200 ℃ medium, the truly all round purpose radar!
- Application
- Liquid
- Solid
- Powder
- Measuring Range
- 10/20/30/60/120m
- Antenna Type
- SS+PTFE/PTFE/High Temp(-40 to 200℃）
- Process Connection
- Thread G1.0/1.5/2.0/3.5, NPT1.0/1.5/2.0/3.5
- Stainless Steel Flange DN50…DN250
- PTFE Flange DN50…DN250
- Swiveling Flange DN80…DN150
- Tri-clamp
- Bracket
- Beam Angle
- 3°/8°
- Response Time
- ＜0.6 s
- Medium Temperature
- -40 to 120/200 ℃
- DK Value
- ＞2
- Accuracy
- 2 mm
- Output
- 4-20mA HART
- RS485 MODBUS RTU
- 0-5V
- 0-10V
- Frequency
- 76-81G Hz
- Protection/Housing
- Aluminum/IP68
- Aluminum Dual Compartment/IP67
- SS316L/IP68
- Plastic/IP66
- Instrument Type
- Standard
- Intrinsically Safe/Ex db ia IIC T6 Gb;
- Flameproof/Ex tb IIC T80℃ Db
- Dust Ignition Proof
- Cable Intry
- M20*1.5/ ½”NPT
- Process Pressure
- -0.1 to 2MPa
？
