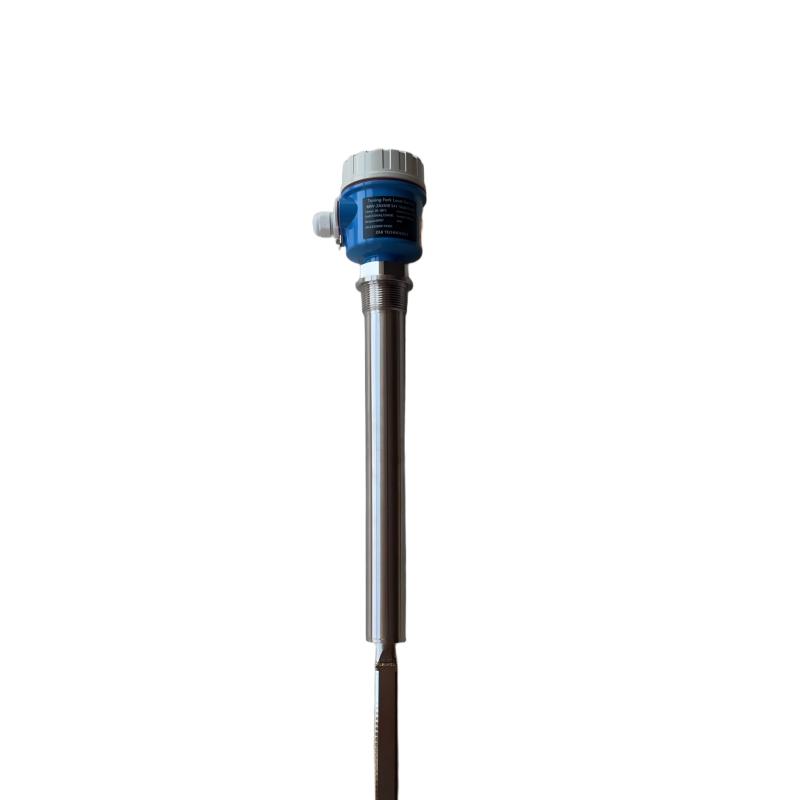

ZAXVIB S41 Tuning Fork Level Switch-Standard
Tuning fork levelswitchcan measure a variety of material levels, it has wide applicablity and extremely high reliability. The products are used in petrochemical, metallurgy, lightindustry,building materials, environmental protection and other industies to achieve the monitoring of salt mine storage bins, the reliable measurement of stock bins of foam molding machines and plastic uptake machines (low density foam particles), and precise measurement of cement packaging hoppers, rubber production raw material silos, sintered ash silos in smelters.The tuning fork level switch is easy to install and maintenance free. Its working has nothing to do with the conductvity, dielectic constant viscosity, pressure and temperature of the liquid
- Application
- Liquid
- Powder
- Measuring Temperature
-40~80℃
- -40~150℃
- -40~300℃
- Power
- 5W
- Time Delay
1-30s
- Vibrating Frequency
300±50HZ
- Storage Temperature
-40 to 85℃
- Output
Relay DPDT 5A 250VAC Max/5A 72VDC Max
- Relay SPDT 5A 250VAC/ Max 5A 60VDC Max
- PNP/NPN 18-50V DC Three—Wire
- NAMUR Two-Wire
- Cable Inlet
M20*1.5
- Working Pressure
≤3MPa
- Power Supply
24V DC/220V AC
- Protection
IP65
- Instrument type
Standard
- Flameproof
- Process Connection
Thread G3/4,G1.0,G1.5
- Flange DN40 to DN150
- Clamp 50.5mm/64mm
- Probe Material
SS304
- SS316L
- PTFE
- Minimum inductive density of fork bar material
Powder: ≥0.07g/cm3;
Liquid: ≥0.7g/cm3;
Viscosity: 1~10000cSt
?
