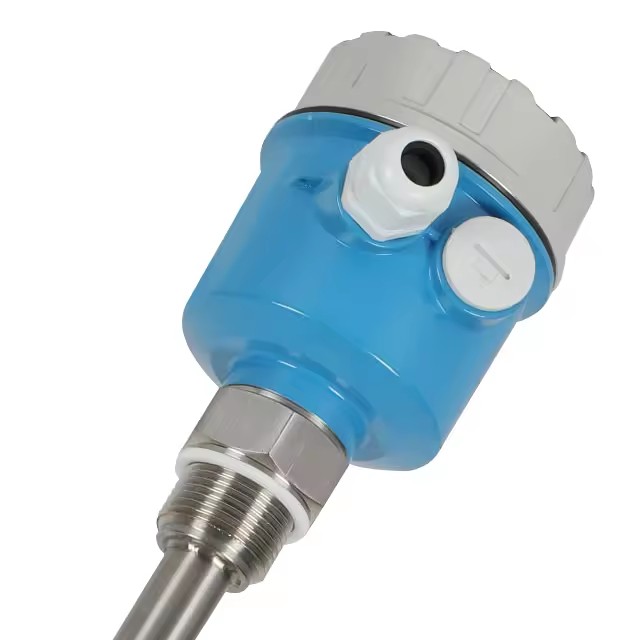

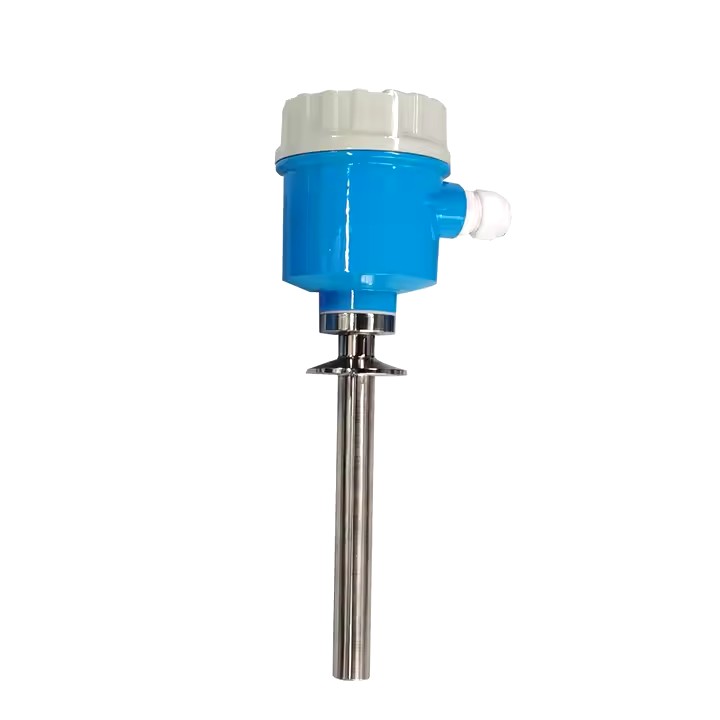

ZAXVIB S51 Vibrating Level Switch-Rob Type
ZAXVIB S51 The single-bar vibrating level swichis caused bytheresonance of the piezoelectic crystal tocause its vibration, when it is damped bythe material, the amplitude is sharplyreduced and the frequency and phase are significantly changed, these changeswilbe detected by the intemalelectronic circuitafter processing.
- Application
- Powder
- Measuring Temperature
-40~80℃
- -40~150℃
- -40~300℃
- Power
- 2.5W
- Time Delay
1-59s
- Storage Temperature
-40 to 85℃
- Output
Relay DPDT 5A 220VAC
- Relay SPDT 5A 220VAC
- Cable Inlet
M20*1.5
- Working Pressure
≤3MPa
- Power Supply
24V DC/220V AC
- Protection
IP65
- Instrument type
Standard
- Flameproof
- Process Connection
Thread G3/4，G1.0，G1.5
- Flange DN40 to DN150
- Clamp 50.5mm/64mm
- Probe Material
SS304
- SS316L
？
