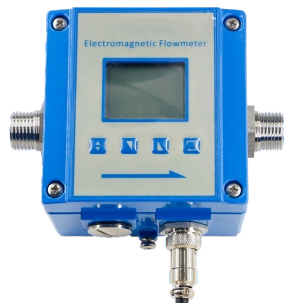

LDG Magnetic Flow Meter-Mini Type
Electromagnetic flow meter is flexible and universally applicable flow measurement systems. It is a velocity flow meter which does not have any moving parts and is ideal for conductive fluid.
- Nominal Diameters
DN6-500
- Accuracy
- ±0.5%
- ±1.0%
- Conductivity
10 μS/cm
demineralized water > 20 µS/cm
- Power Consumption
<150mA
- Flow Range
DN6: 03~300L/h
DN12: 50~1500L/h
DN25: 0.4~10m³/h
DN50: 1.5~40m³/h;
- Ambient Temperature
-10°C~60°C
- Liner Material
PEEK
- Electrode Material
316L
Hb
Hc
Ti
- Shell Material
Carbon Steel
Stainless Steel
- Nominal Pressure
0.6MPa to 1.6MPa
- Connection
Threaded, standard G1/2, G1, G2; NPT thread optional
Material optional: SS304/SS316/plastic
- Protection
IP65
- IP67 optional
- Output
4-20mA, pulse/frequency, Rs485
- Power Supply
24VDC±20%(19.2V-28.8V)
