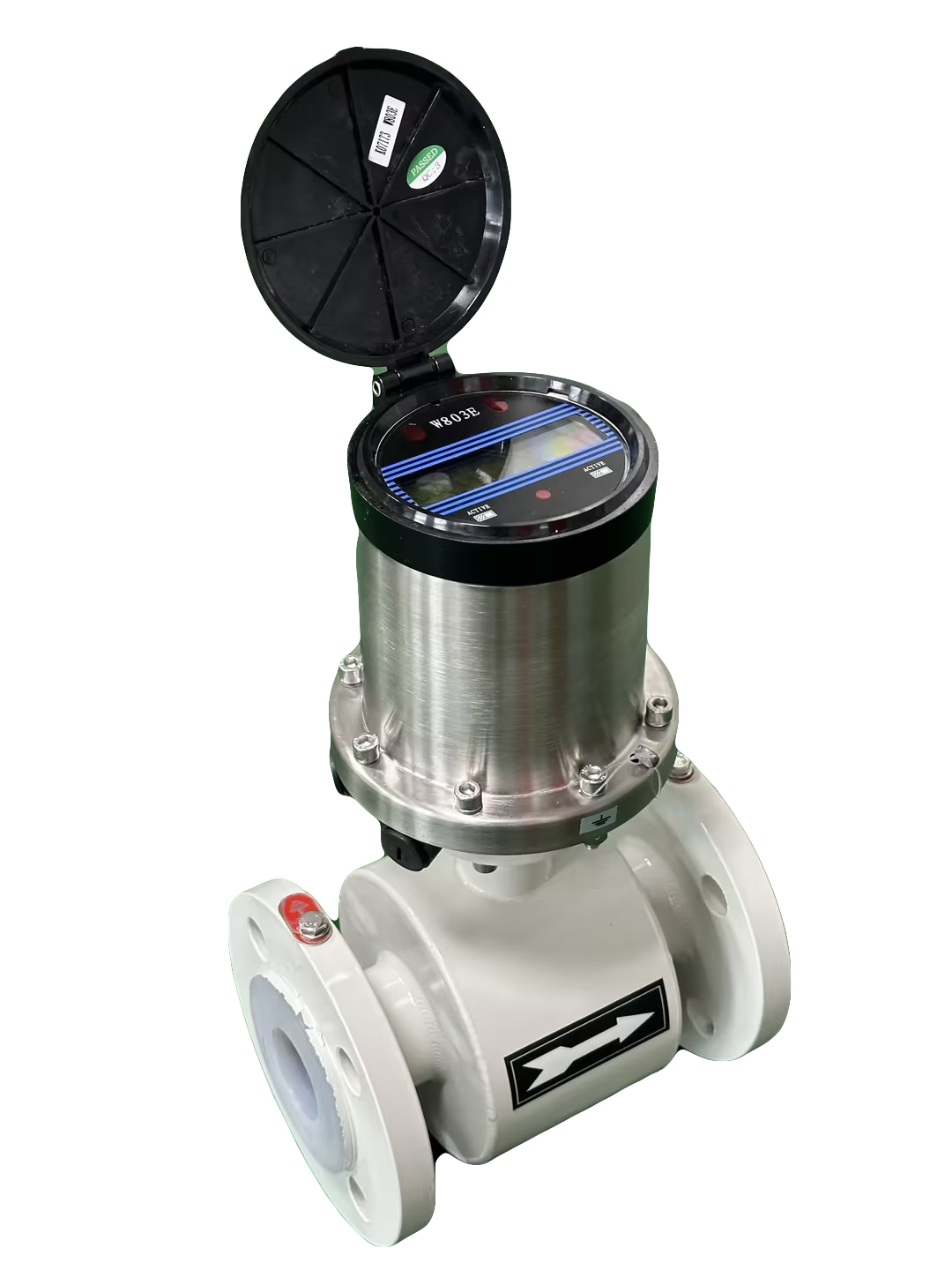

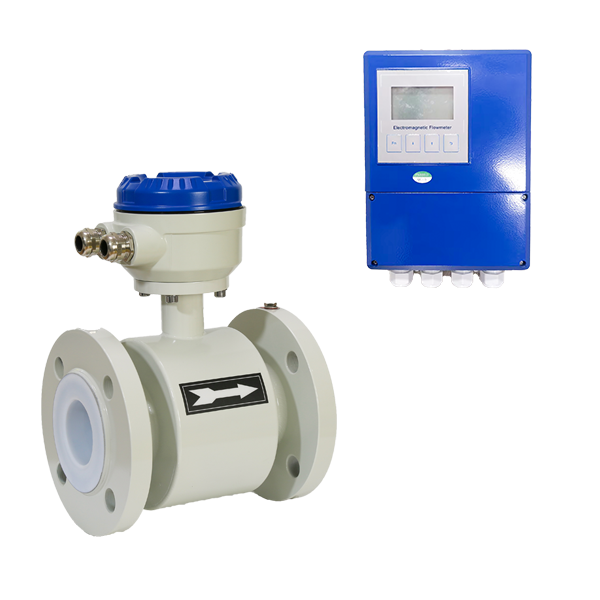

LDG Magnetic Flow Meter
Electromagnetic flow meter is flexible and universally applicable flow measurement systems. It is a velocity flow meter which does not have any moving parts and is ideal for conductive fluid.
- Nominal Diameters
DN3-3000
- Accuracy
- ±0.5% of reading at flow velocity ≥ 0.5m/s
- ±0.2% optional at flow velocity ≥ 0.5m/s
- Repeatability
≤0.17%
- Conductivity
> 5 μS/cm, demineralized water > 20 µS/cm
- Power Consumption
<20W
- Communication
RS485 MODBUS RTU standard
HART
GPRS
PROFIBUS
- Ambient Temperature
-20°C~60°C
- Liner Material
PTFE (-20°C~150°C, DN15-DN1600)
FEP (-20°C~120°C, DN3-DN1800)
PFA (-20°C~160°C, DN3-DN800)
Polyurethane (-10°C~60°C, DN40-DN1600)
Neoprene (-10°C~80°C, DN40-DN3000)
Hard Rubber （-10°C~80°C, DN 40-DN3000）
Ceramic (-20°C~180°C, DN15-DN200)
- Sensor Material
Measuring tube: SS304
Flange & housing: carbon steel (standard), SS304 / SS316 optional
- Nominal Pressure
PN10 / PN16 / PN25 / PN40 DIN
10K / 20K / 30 K JIS
150# / 300# / 600# ANSI
High pressure 42 MPa / ANSI 2500# customizable
- Function
High and low alarm, empty pipe alarm, self-diagnosis
- Cable Inlet
M20*1.5
- Display Unit
L/s, L/m, L/h, m 3 /s, m 3 /m, m 3 /h, UKG, USG gal/s gal/m gal/h kg/s kg/m kg/h t/s t/m t/h
