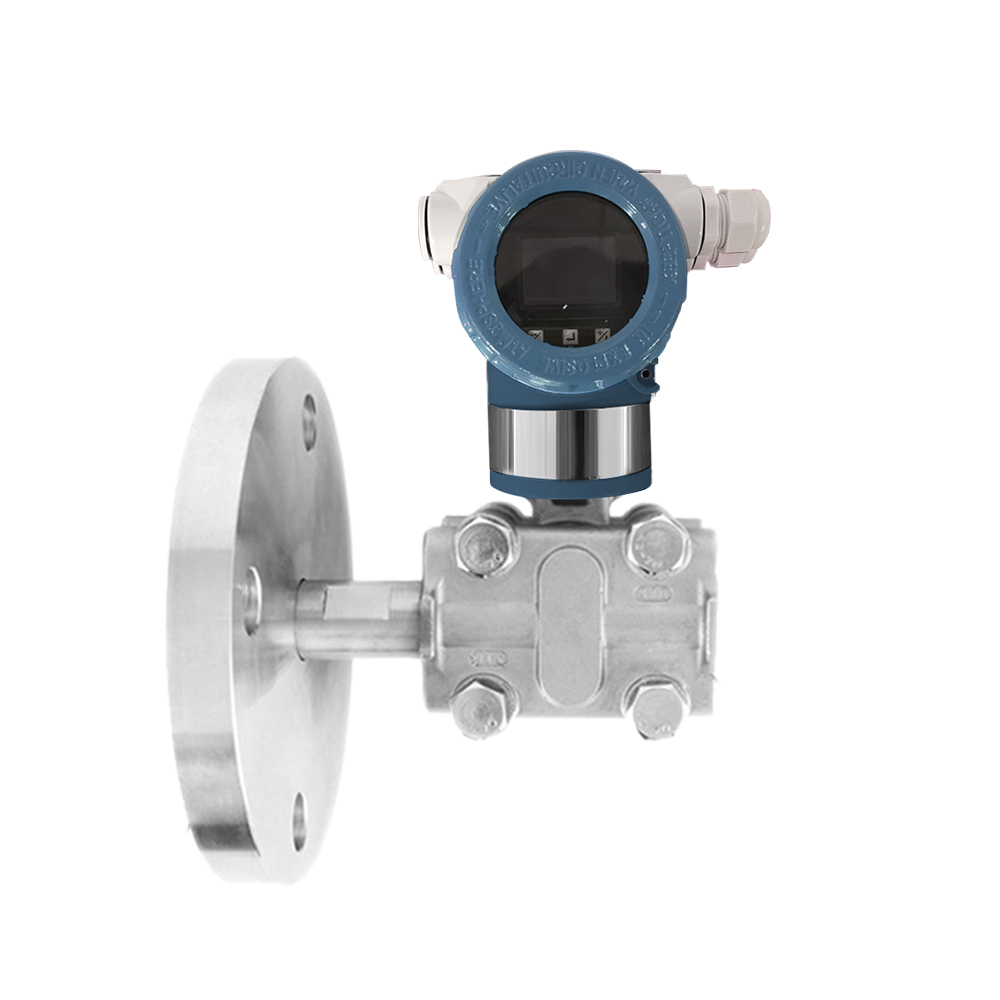

ZAXDP32 Differential Pressure Transmitter-Single Flange

The ZAXDP series intelligent pressure/differential pressure transmitters feature a central sensing unit utilizing advanced high-precision silicon pressure and differential pressure sensor technology. The sensors are positioned at the top of the metal housing, maintaining mechanical and thermal isolation from the medium contact surface. Integrated glass-sintered sensor leads ensure robust electrical insulation from the metal substrate, enhancing circuit flexibility and transient voltage protection capabilities. With platinum-grade accuracy of ±0.05% and unidirectional overpressure capacity up to 25MPa, the transmitters demonstrate exceptional static pressure performance. Their static pressure error is optimally controlled within ±0.05%/10MPa, while temperature influence remains minimal at ±0.04%/10K.
